Shandong Volfond Machinery Manufacturing Co., Ltd
HOME >> Product >> Straw Baler

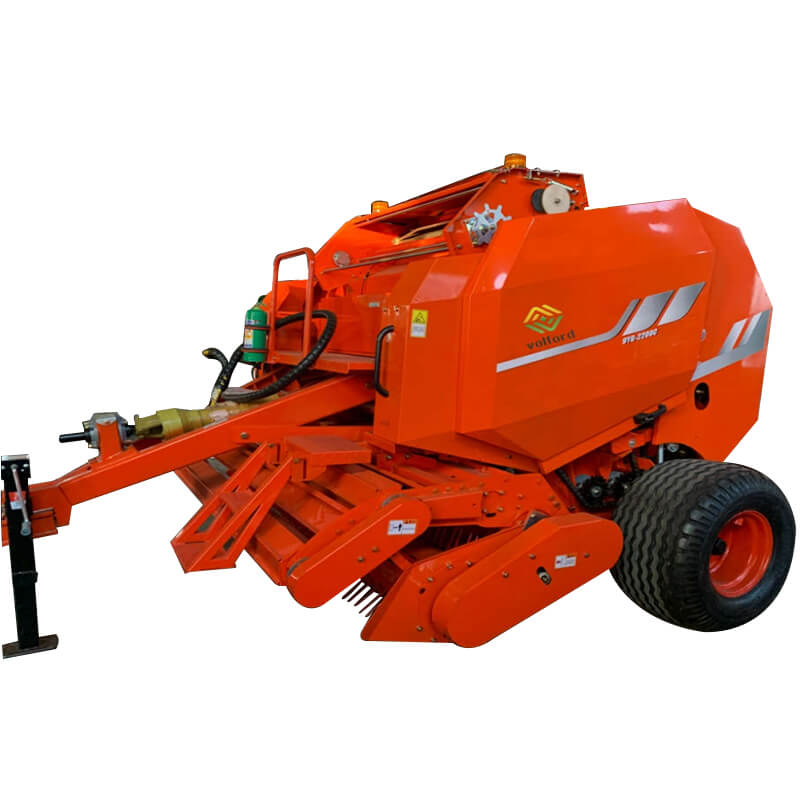

9YG 2200C Round Baler Technical Parameters
All accessories are selected from top domestic suppliers in order to provide users with high-quality tractors.
The company has strong technical strength, excellent production equipment, advanced processing technology, complete testing equipment, and independent research and development processing capabilities from forging and casting to metal cutting, sheet metal, heat treatment, electrophoresis, spraying, drying, and assembly.
Item | Data |
Model | 9YG 2200C |
Pickup Structure Type | Tine type |
Pickup Width | 2250mm |
Number of Rollers | 18 |
Roller Speed | 320r/min |
Compression Chamber Diameter | ø1200mm |
Feeder Structure | Plucking Grass Roll + Roller |
Structure Type | Compression roller |
Bale size | 1300×1400mm |
Overall Dimensions | 4000×3000×2400mm |
Total Weight | 3716kgs |
Wrapped Way | Net |
Matched Tractor Power | ≥75 |
Tyre | 500/50-17 |
