Shandong Volfond Machinery Manufacturing Co., Ltd

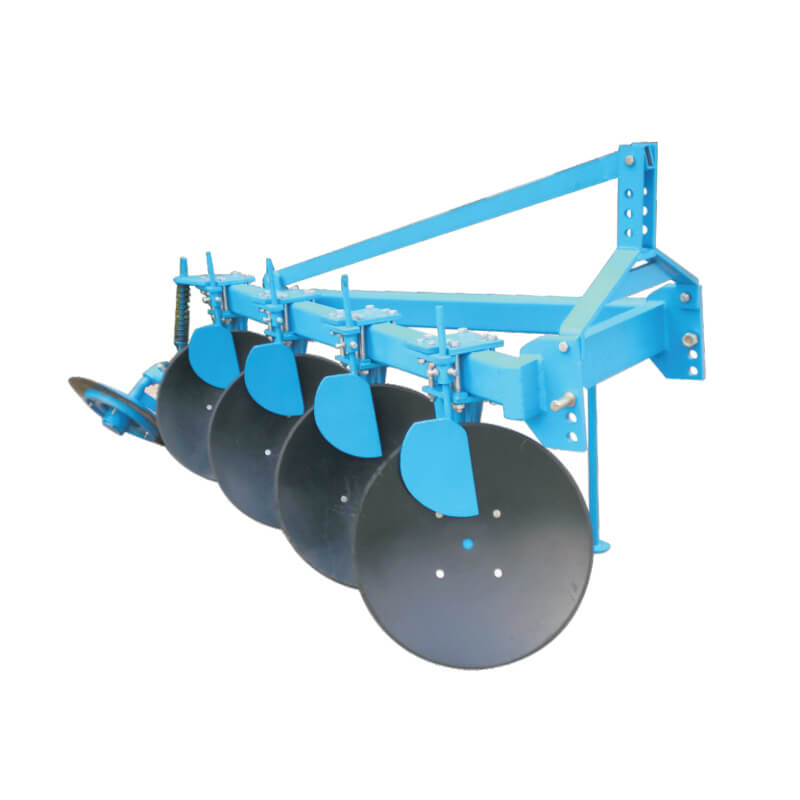

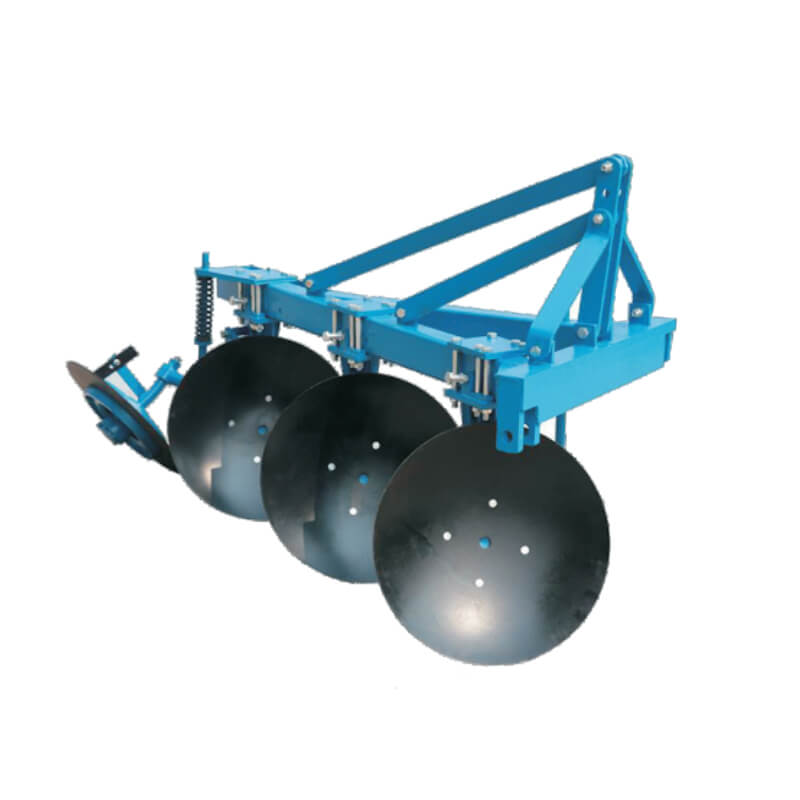

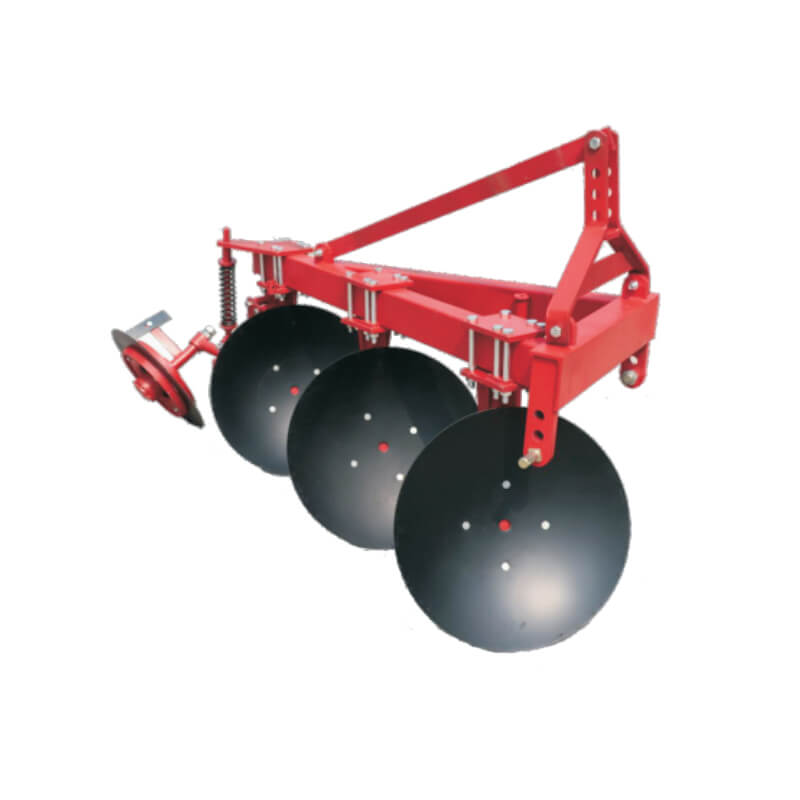

The Single-way disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.
Model | 1LYQ-220 | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 | 1LY(T)-325 | 1LY(T)-425 | 1LY(T)-525 | 1LY(T)-625 |
Width of cut (mm) | 400 | 600 | 800 | 1000 | 750 | 1000 | 1250 | 1500 |
Depth of cut (mm) | 200 | 200 | 250~300 | |||||
Dia of disc (mm) | 510 | 510 | 510 | 510 | 660 | |||
Q'ty of disc | 2 | 3 | 4 | 5 | 3 | 4 | 5 | 6 |
Weight (kg) | 130 | 150 | 170 | 230 | 350 | 400 | 450 | 520 |
Tractor power (hp) | 18-20 | 25-50 | 40-70 | 50-70 | 60-80 | 80-120 | 120-150 | 160-180 |
Mounted cat | Cat I | Cat II | ||||||
